Aperçu ProduitsContre- équipement de terrorismeYQ7 Multi-parameter Detection Alarm Instrument with 7 Parameters Detection LCD Display and Audible Visual Alarm for Safety Monitoring
YQ7 Multi-parameter Detection Alarm Instrument with 7 Parameters Detection LCD Display and Audible Visual Alarm for Safety Monitoring
YQ7 Multi-parameter Detection Alarm Instrument with 7 Parameters Detection LCD Display and Audible Visual Alarm for Safety Monitoring YQ7 Multi-parameter Detection Alarm Instrument with 7 Parameters Detection LCD Display and Audible Visual Alarm for Safety Monitoring YQ7 Multi-parameter Detection Alarm Instrument with 7 Parameters Detection LCD Display and Audible Visual Alarm for Safety Monitoring YQ7 Multi-parameter Detection Alarm Instrument with 7 Parameters Detection LCD Display and Audible Visual Alarm for Safety Monitoring YQ7 Multi-parameter Detection Alarm Instrument with 7 Parameters Detection LCD Display and Audible Visual Alarm for Safety Monitoring
Contactez

YQ7 Multi-parameter Detection Alarm Instrument with 7 Parameters Detection LCD Display and Audible Visual Alarm for Safety Monitoring

Lieu d'origine: Chine Nom de marque: topsky

Détail Infomation
Taille de perceuse: 4/5/6/8mm Fonctionnalité: Multifonctionnel
Le poids du fardeau: <30 kg Mot clé: tenue de protection chimique de sécurité
humidité relative: 0 à 95% Application: La lutte contre le terrorisme
Plaques anti-souffle blindées: 1800 m/s (aine, poitrine et cou) Couverture d'azimut: 0° ≈ 360°
Fenêtre transparente: ≥750 m/s Angle: 120 degrés
Matériel: Alliages et composites à haute résistance autre nom: Combinaisons de protection médicale
Batterie: 7 piles sèches alcalines 1,5 AAA * 2 Niveau de protection: NIJ IIIA pour 9 mm et .44mag
matériau extérieur: Pare-balles : UD aramide
Mettre en évidence:

7 Parameters Detection Gas Detector

,

LCD Display Safety Monitoring Device

,

Audible and Visual Alarm Multi-parameter Detection Alarm Instrument

Description de produit

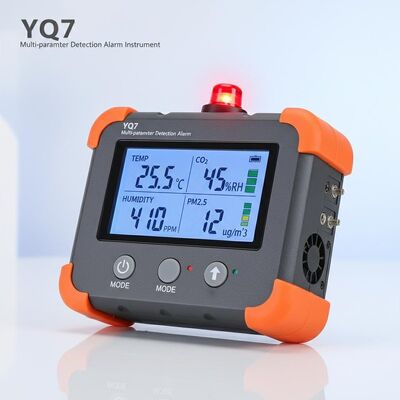

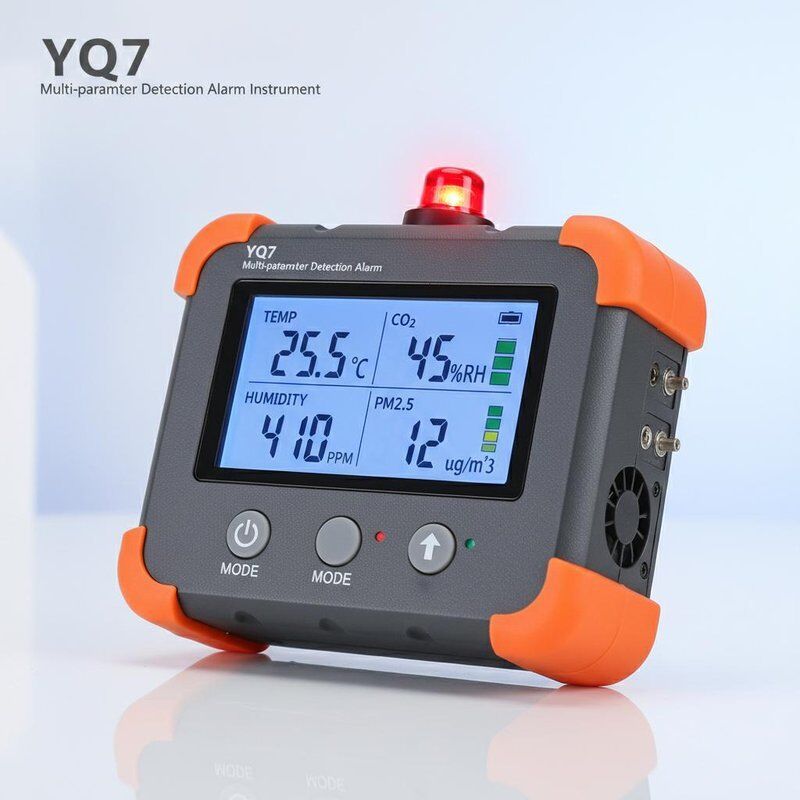

YQ7 Multi-parameter Detection Alarm Instrument
Product Overview

The YQ7 multi-parameter detection alarm instrument simultaneously and continuously detects 7 parameters including CH4, O2, CO, CO2, H2S, °C, and m/s, triggering audible and visual alarms when parameters exceed preset limits. Utilizing an 8-bit microcontroller and high-precision detection components, this instrument delivers high sensitivity and rapid response. The 3-inch color LCD provides clear, reliable display for all operational personnel including technicians, operators, and management.

Key Features
  • Simultaneous detection of 7 parameters: CH4, O2, CO, CO2, H2S, ℃, and m/s
  • User-configurable alarm points
  • Secondary sound and light alarm function
  • Replaceable modular sensors
  • Comprehensive monitoring for mine gas and environmental parameters
  • One-click zero calibration with charging zero calibration capability
  • Infrared device for adjustable configuration
  • Data storage capacity: 10,000 measurement data sets
Technical Specifications
Parameter Measurement Range Resolution
Methane (CH4) 0 - 100% (VOL) 0.01%
Oxygen (O2) 0 - 30% (VOL) 0.1%
Carbon Monoxide (CO) 0 - 1000 ppm 1 ppm
Hydrogen Sulfide (H2S) 0 - 100 ppm 1 ppm
Temperature -20.0 - 60.0 ℃ 0.1 ℃
Wind Speed 0.4 - 30.0 m/s 0.1 m/s

Display: LCD shows real-time data and system status with vibration, sound and light alarm, fault and under-voltage indication

Audible Alarm: ≥75 dB(A) at 1 meter distance

Visual Alarm: Visible ≥20 meters in darkness

Power Supply: 1600 mAH lithium manganese oxide lithium-ion battery with protection board and overcurrent protection

Battery Specifications: Maximum open-circuit voltage: 4.3V, Maximum short-circuit current: 1.0A

Operating Time: 10 hours (non-alarm state)

Housing Material: ABS engineering plastic

Protection Rating: IP54

Weight: 1 kg

Dimensions: 160mm × 85mm × 43mm
